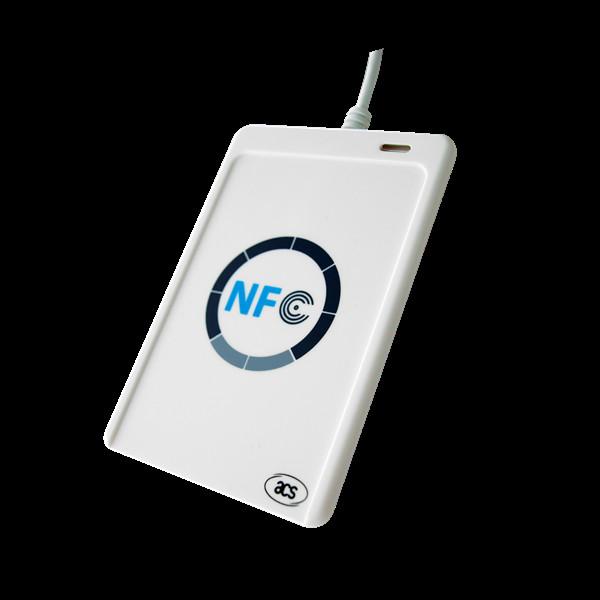

    RFID ACR122U A9 Credit Card Reader Android Contactless Skimmer

    Ask Lasest Price
    Brand Name : ACR
    Price : $29.00/Sets 1-9 Sets
    • Product Details
    • Company Profile

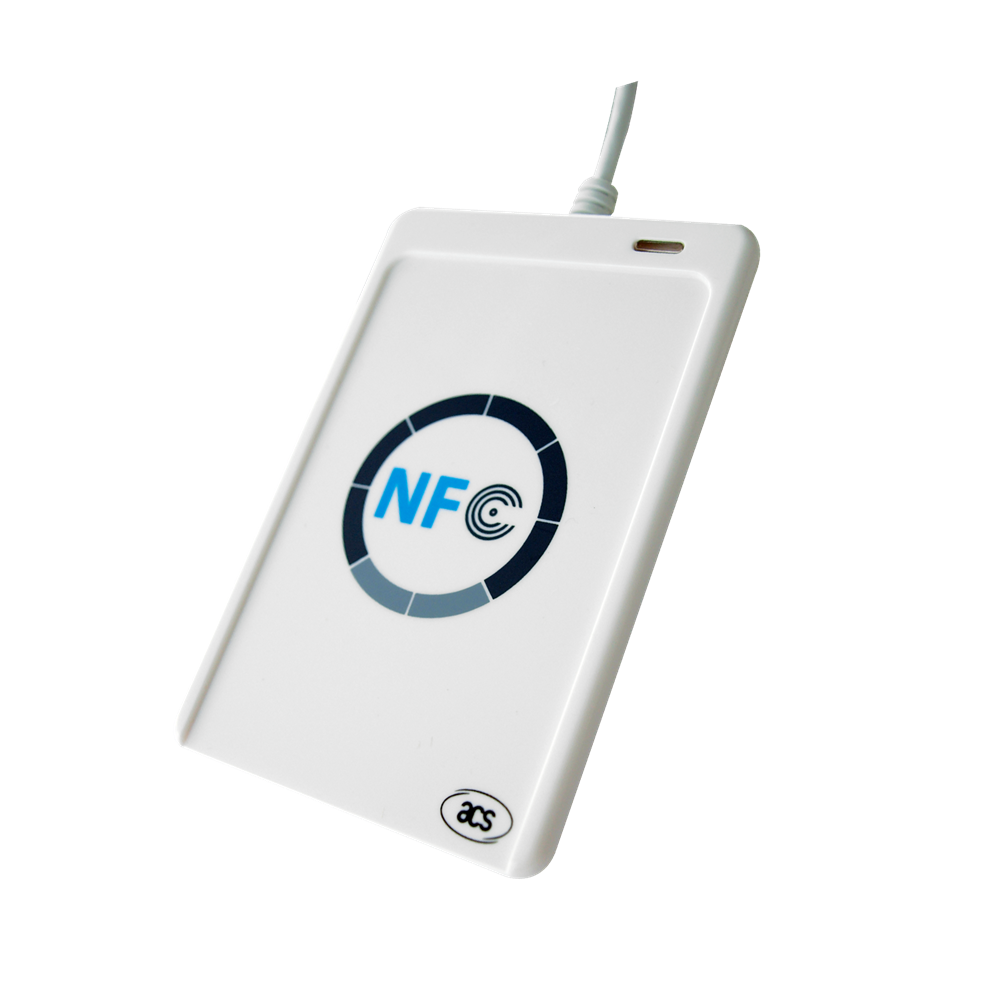

    RFID ACR122U A9 Credit Card Reader Android Contactless Skimmer

    RFID ACR122U A9 Credit Card Reader Android Contactless Skimmer


    Android Contactless NFC Card Skimmer Credit Card Reader ACR122U-A9

    Dimensions98.0 mm (L) x 65.0 mm (W) x 12.8 mm (H)
    Weight70.0 g
    InterfaceUSB Full Speed
    Operating DistanceUp to 50 mm (depends on the tag type)
    Supply VoltageRegulated 5V DC
    Supply Current200mA (operating); 50mA (standby); 100mA (normal)
    Operating Temperature0-50 °C
    Operating Frequency13.56 MHz
    Smart Card Interface Support
    • ISO14443 Type A & B
    • FeliCa
    • 4 types of NFC (ISO/IEC18092) tags
    Compliance / Certifications
    • ISO 18092, ISO 14443, PC/SC, CCID, EN60950/ISO 60950, CE, FCC, MIC, KC, VCCI, RoHS 2, USB Full Speed, Microsoft® WHQL
    Operating System Support
    • Windows®
    • Win CE 5.0 and 6.0
    • Linux®
    • Mac OS®
    • Android™ 3.1 and above


    The ACR1251U USB NFC Reader II provides a range of advanced features including support for NFC tags and devices, firmware upgradeability, and a slot for a SAM (Secure Access Module). It is particularly well-suited to contactless applications that require additional security functions. The SAM enables key diversification and mutual authentication, which helps to prevent key theft and minimize key exposure. As a result, the ACR1251U provides a high level of security for contactless operations.


    We can supply the FREE SDK,which is values 49USD .


    RFID ACR122U A9 Credit Card Reader Android Contactless Skimmer

    ACR122U-A9 NFC Reader&Writer is compliant with both CCID and PC/SC. Thus, it is a plug-and-play USB device allowing interoperability with different devices and applications. With an access speed of up to 424 kbps and a full USB speed of up to 12 Mbps, ACR122U-A9 can also read and write more quickly and efficiently. The proximity operating distance of ACR122U-A9 is up to 5 cm, depending on the type of contactless tag in use.

    In order to increase the security level, ACR122U-A9 can be integrated with an ISO 7816-3 SAM slot. Furthermore, the ACR122U-A9 NFC Reader is available in module form, permitting easy integration into bigger machines, such as POS terminals, physical access systems and vending machines.

    The ACR122U-A9 NFC Reader is ideal for both secure personal identity verification and online micro-payment transactions. Other applications of the ACR122U-A9 include access control, e-payment, e-ticketing for events and mass transit, toll road fare collection and network authentication.

    RFID Readers

    RFID ACR122U A9 Credit Card Reader Android Contactless Skimmer

    Company profile

    Established in 2001 year, Shenzhen Chuangxinji smart card co.,Ltd was specialized in producing

    and marketing of pvc cards,smart cards and RFID wristbands&Tags.

    In possession of three modern and high standard production line:
    PVC card production line with monthly output of 20,000,000 pieces cards: Brand-new CTP machines and brand Heidelberg offset printing machines, 8 compounding machines.
    Antenna production line with monthly output of 20,000,000 pieces cards: roll to roll printing machines, compounding machines, machines for erosion and engraving.
    RFID end product production line with monthly output of 500,000,000 smart cards and 300,000,000 RFID tags: reversed assembling machines compound die cutting machines, laminating machines.

    Marketing Team
    We own 26 marketing staffs who speak English, Germany, France, Spanish, Arabic and so on, our business range from Europe, America, Oceania, Africa, Asia and middle east countries and regions.
