Portable Acm1252u-Z2 Nfc Contactless Smart Rfid Card Reader Writer Skimmer
Overview:

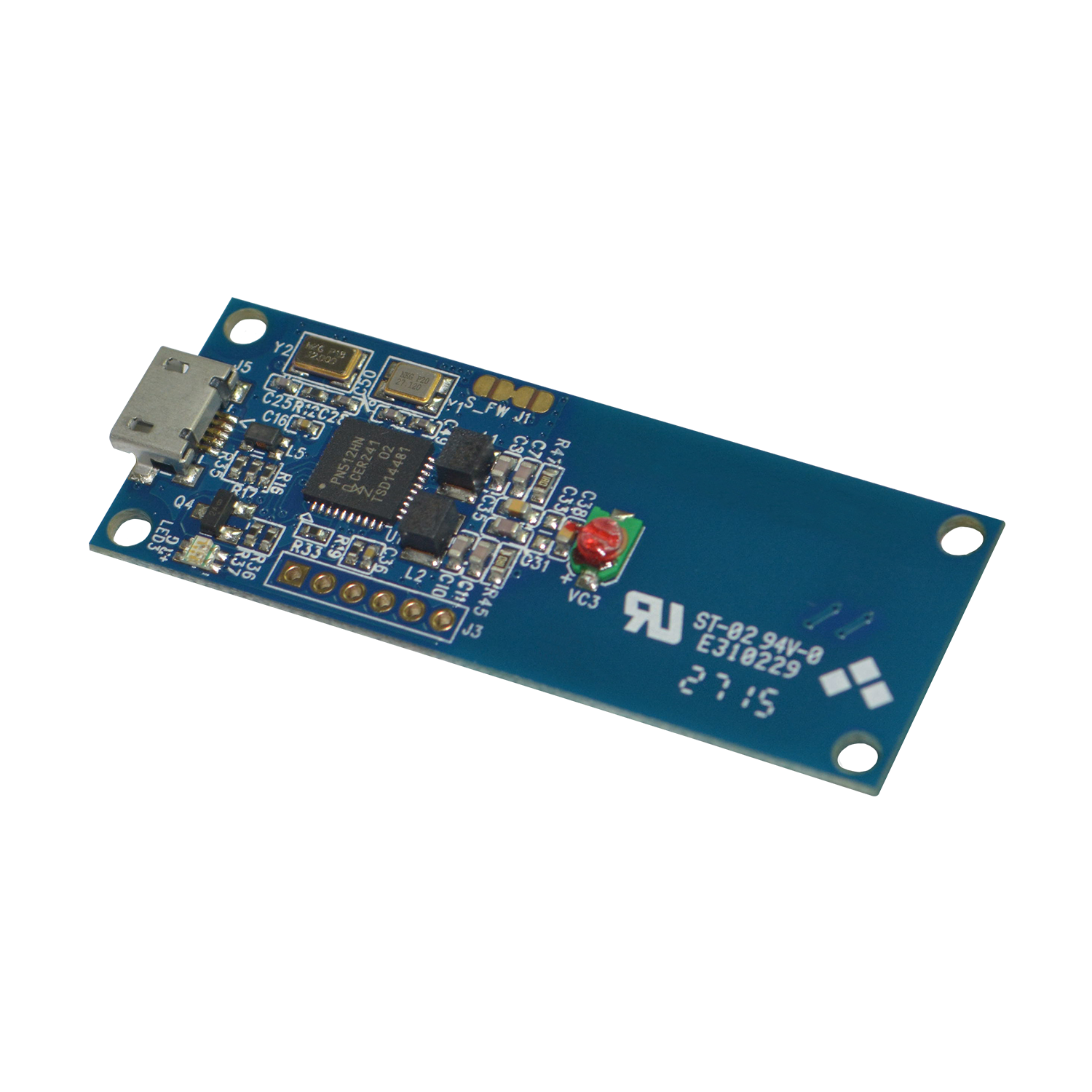

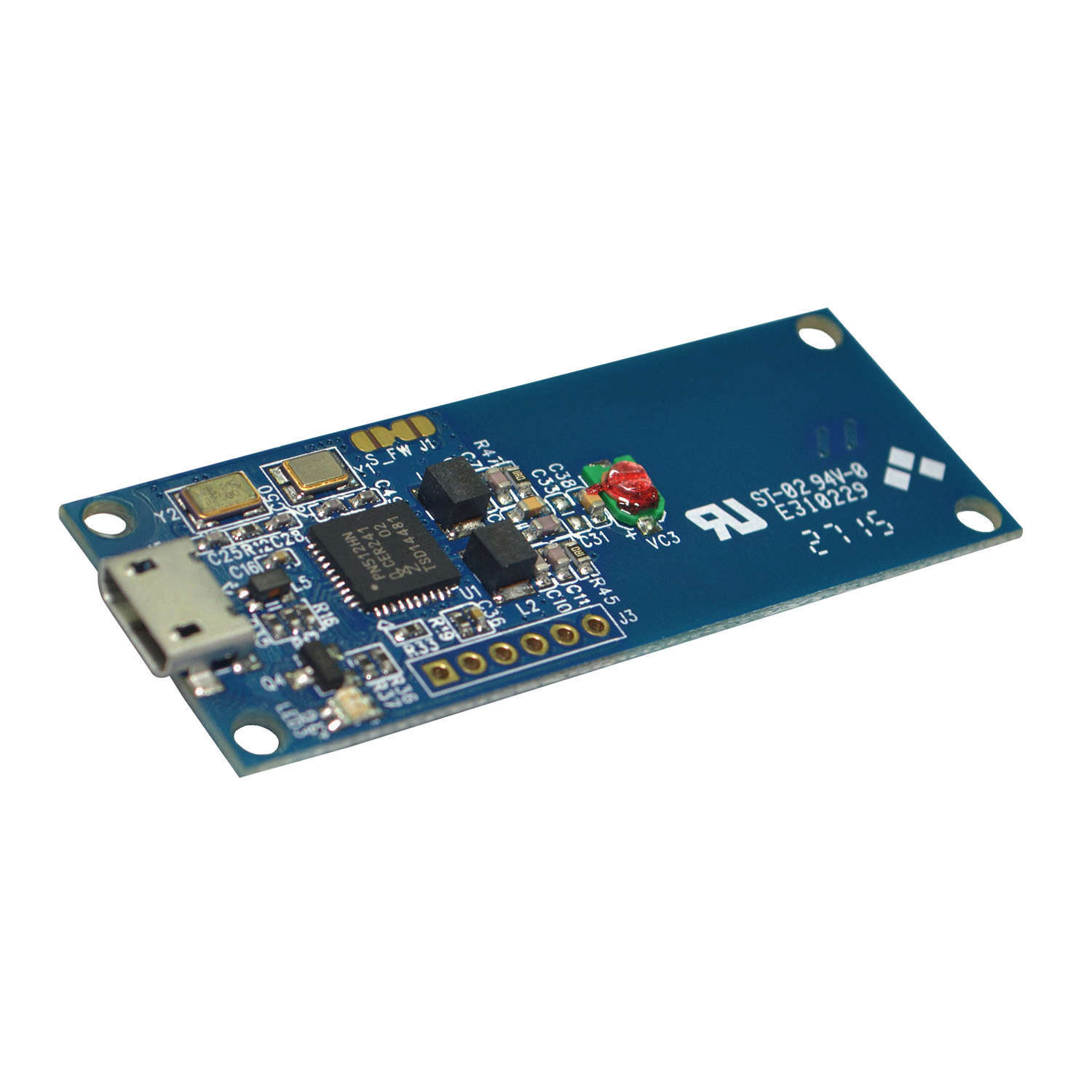

ACM1252U-Z2 is a small NFC reader module developed based on 13.56 MHz contactless technology, for fast and easy integration to embedded systems.
The ACM1252U-Z2 supports ISO 14443 Type A and B cards, and ®, FeliCa, and ISO 18092–compliant NFC tags. It also supports other NFC devices with an access speed of up to 424 Kbps and proximity operating distance of up to 30 mm (depending on tag type used). ACM1252U-Z2 also has an anti-collision feature that ensures only one card is accessed when multiple cards are presented simultaneously.
It is PC/SC-compliant and firmware upgradeable. Its small size allows it to be integrated to compact machines. It can be used with a detachable micro-USB cable that allows it flexibility to be located far from the USB host interface.
Main Features:
Specification:
| Physical Characteristics | |
|---|---|
| Dimensions (mm) | 52.0 mm (L) x 20.0 mm (W) x 6.0 mm (H) |
| Weight (g) | 3.65 g |
| USB Interface | |
| Protocol | USB CCID |
| Connector Type | Micro USB |
| Power Source | From USB port |
| Speed | USB Full Speed (12 Mbps) |
| Cable Length | 1.0 m, Detachable (Optional) |
| Contactless Smart Card Interface | |
| Standard | ISO/IEC 18092 NFC, ISO 14443 Type A & B, , FeliCa |
| Protocol | ISO14443-4 Compliant Cards, T=CL Classic Card Protocol, T=CL ISO 18092, NFC Tags FeliCa |
| Antenna | 20 mm x 22 mm |
| Built-in Peripherals | |
| LED | 1 bi-color: Red and Green |
| Other Features | |
| Firmware Upgrade | Supported |
| Certifications/Compliance | |
| Certifications/Compliance | ISO 14443 ISO 18092 USB Full Speed PC/SC CCID CE FCC RoHS 2 REACH Microsoft® WHQL |
| Device Driver Operating System Support | |
| Device Driver Operating System Support | Windows® Linux® MAC OS® Solaris Android™ |
Main Applications:
