    PC USB ACR122U-a9 NFC RFID Contactless Smart Card Reader writer

    Ask Lasest Price
    Brand Name : ACR
    Price : $29.00/Sets 1-9 Sets
    • Product Details
    • Company Profile

    PC USB ACR122U-a9 NFC RFID Contactless Smart Card Reader writer

    PC USB ACR122U-a9 NFC RFID Contactless Smart Card Reader writer
    Dimensions
    98.0 mm (L) x 65.0 mm (W) x 12.8 mm (H)
    Weight
    70.0 g
    Interface
    USB Full Speed
    Operating Distance
    Up to 50 mm (depends on the tag type)
    Supply Voltage
    Regulated 5V DC
    Supply Current
    200mA (operating); 50mA (standby); 100mA (normal)
    Operating Temperature
    0-50 °C
    Operating Frequency
    13.56 MHz
    Smart Card Interface Support
    * ISO14443 Type A & B
    *
    * FeliCa
    * 4 types of NFC (ISO/IEC18092) tags
    Compliance / Certifications
    * ISO 18092, ISO 14443, PC/SC, CCID, EN60950/ISO 60950, CE, FCC, MIC, KC, VCCI, RoHS 2, USB Full Speed, Microsoft® WHQL
    Operating System Support
    * Windows®
    * Win CE 5.0 and 6.0
    * Linux®
    * Mac OS®
    * Android™ 3.1 and above

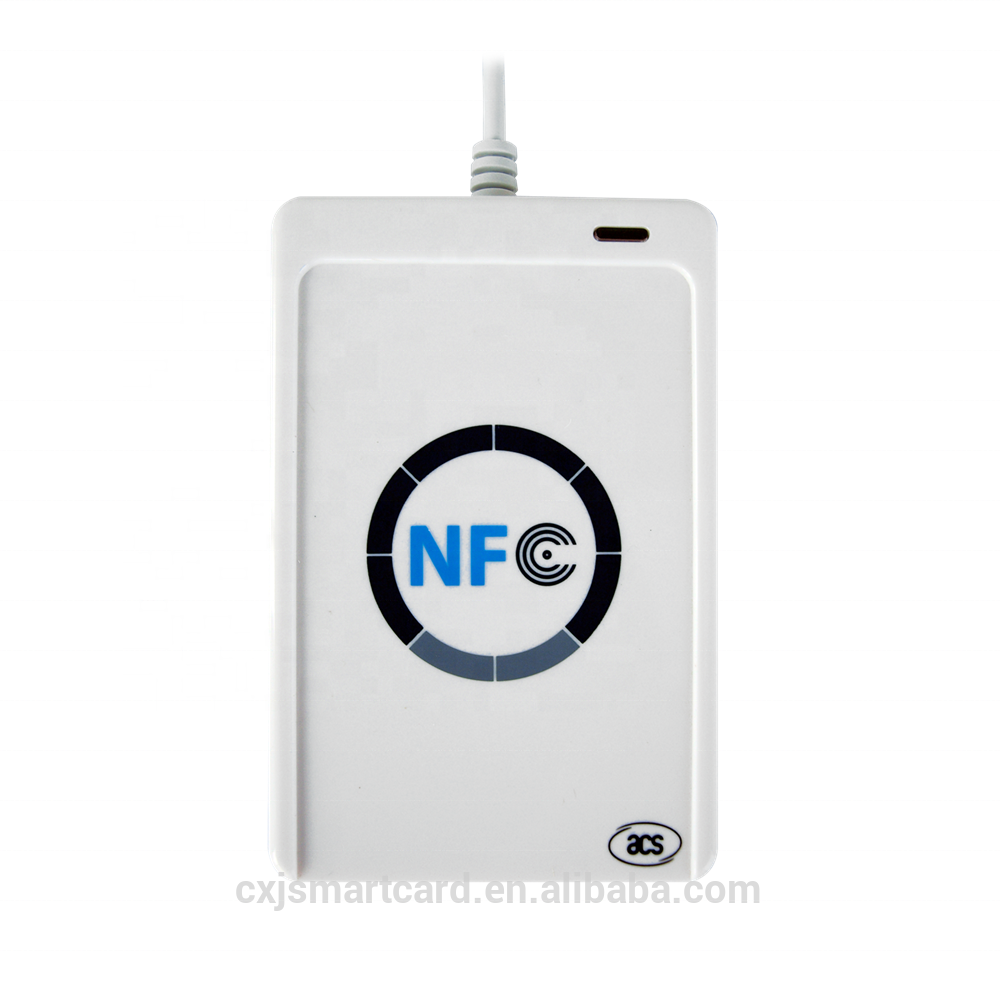

    The ACR122U NFC Reader is a PC-linked contactless smart card reader/writer developed based on 13.56 MHz Contactless (RFID) Technology. Compliant with the ISO/IEC18092 standard for Near Field Communication (NFC), it supports not only ® and ISO 14443 A and B cards, but also all four types of NFC tags.
    Features: USB 2.0 Full Speed Interface CCID Compliance Smart Card Reader: Read/write speed up to 424 kbps Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type) Supports ISO 14443 Type A and B cards, , FeliCa, and all 4 types of NFC (ISO/IEC 18092) tags Built-in anti-collision feature (only 1 tag is accessed at any time) Application Programming Interface: Supports PC/SC Supports CT-API (through wrapper on top of PC/SC) Peripherals: User-controllable bi-color LED User-controllable buzzer Supports Android™ OS 3.1 and abov


    PC USB ACR122U-a9 NFC RFID Contactless Smart Card Reader writer
    PC USB ACR122U-a9 NFC RFID Contactless Smart Card Reader writer
