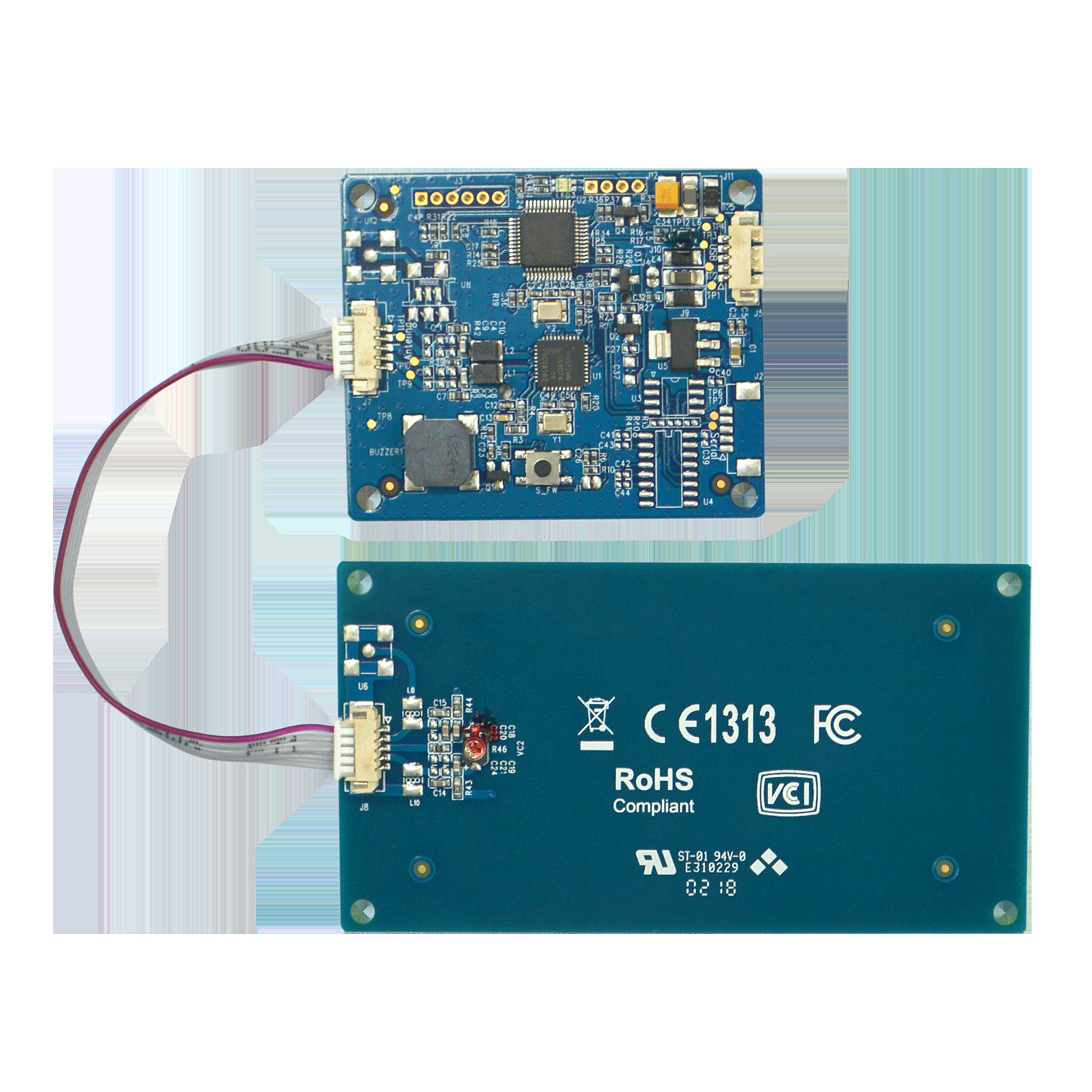

ACM1252U-Y3 USB NFC Reader Module

AMR220-C1 ACS Secure Bluetooth® mPOS Reader supports ISO 7816 Class A, B, and C full-sized smart cards (5 V, 3 V, and 1.8 V), including microprocessor cards with T=0 and T=1 protocol, ISO 14443 Type A and B smart cards, ®, FeliCa, and most NFC tags and devices compliant with the ISO 18092 standard. It is primarily designed to meet major payment and security standards, such as Mastercard® Contactless, Visa® Contactless, EMV™ Level 1 & Level 2. It is Apple Pay® and Android Pay™-ready.

The features of ACM1252U-Y3 USB NFC Reader Module :

Bluetooth® Interface
USB Full Speed Interface
Power Source:
Battery-Powered (incorporates a Litium-ion battery rechargeable through USB Micro-B port)
USB-Powered (through PC-linked mode)
CCID Compliance
Smart Card Reader:
Contactless Interface:
Read/write speed up to 848 kbps
Built-in Antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
Supports ISO 14443 Type A and B cards, , FeliCa, and all 4 types of NFC (ISO/IEC 18092) tags
Supports Mastercard® Contactless and Visa® Contactless compliant cards
Built-in anti-collision feature (only 1 tag is accessed at any time)
NFC Support
Card Reader/Writer Mode
Contact Interface:
Read/write speed up to 600 kbps
Supports ISO 7816 Class A, B, and C (5 V, 3 V, 1.8 V) full-sized cards
Supports microprocessor cards with T=0 or T=1 protocol
Supports PPS (Protocol and Parameters Selection)
Features Short Circuit Protection
Built-in Peripherals:
LEDs:
Four User-controllable single-color LED (Green)
One Charging Status LED (Red)
One Bluetooth Status LED (Blue)
Buttons:
Power Switch
Bluetooth Switch
User-controllable speaker (Audio Tone Indication)
Application Programming Interface:
Supports PC/SC
Supports CT-API (through wrapper on top of PC/SC)
USB Firmware Upgradeability
Supports Android™ 4.4 and later
Supports iOS 8.0 and later

Shenzhen Chuangxinji smart co.,Ltd was established in 2009 year,which was specialized in producing and marketing of EMV pos,Cash register,POS terminal ,POS system and NFC reader etc.

We owns a series of excellent products and solutions such as Android POS terminal, RFID NFC reader,POS tablet,Cash register,PDA, EMV POS etc. The intelligent products are based on an unified SDK development kit, user-friendly for secondary development. We also provides the professional ODM service from appearance design to software and hardware development to enhance the customers' business efficiency and brand image.

Shenzhen Chuangxinji smart card co.,Ltd was established in 2001 year,which was specialized in producing

and marketing of pvc cards,smart cards and RFID wristbands&NFC Tags.

In possession of three modern and high standard production line:
PVC card production line with monthly output of 20,000,000 pieces cards: Brand-new CTP machines and brand Heidelberg offset printing machines, 8 compounding machines.
Antenna production line with monthly output of 20,000,000 pieces cards: roll to roll printing machines, compounding machines, machines for erosion and engraving.
RFID end product production line with monthly output of 500,000,000 smart cards and 300,000,000 RFID tags: reversed assembling machines compound die cutting machines, laminating machines.
