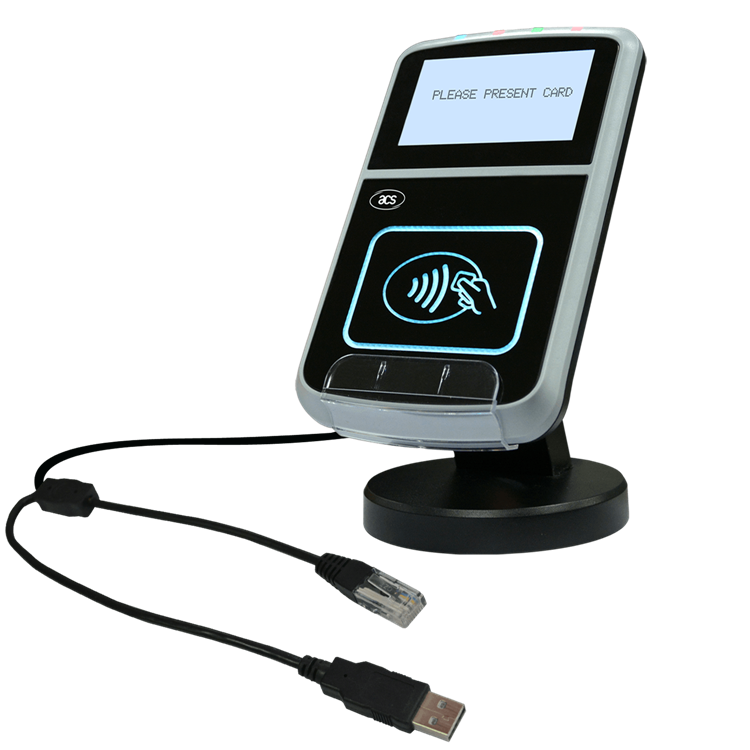

RS232 interface ACR123S with LCD Intelligent Contactless Reader
Contactless technology revolutionizes the everyday purchasing experience of consumers throughout the world. This ramps up the demand for a powerful product that will provide support for contactless payment applications. The ACR123S is specifically designed to cater to this market need.
The ACR123S Intelligent Contactless Reader is a cost-effective, flexible and intelligent contactless reader that can be integrated to existing POS (Point-of-Sale) terminals or cash registers to enable the convenience of a cashless payment system. Developed based on the 13.56 MHz contactless (RFID) technology, it supports any contactless card following the ISO 14443-4 standard.
| Physical Characteristics | |
|---|---|
| Dimensions (mm) | Main Body: 159.0 mm (L) x 100.0 mm (W) x 21.0 mm (H) With Stand: 177.4 mm (L) x 100.0 mm (W) x 94.5 mm (H) |
| Weight (g) | Main Body: 281 g With Stand: 506 g |
| Serial Interface | |
| Protocol | RS-232 |
| Connector Type | RJ45 Connector |
| Power Source | From USB Port |
| Cable Length | 1.5 m, Fixed (RJ45 + USB) |
| Contactless Smart Card Interface | |
| Standard | ISO 14443 A & B Parts 1-4 |
| Protocol | ISO 14443-4 Compliant Card, T=CL ® Classic Card, T=CL |
| SAM Card Interface | |
| Number of Slots | 3 Standard SIM-sized Card Slots |
| Standard | ISO 7816 Class A, B, C (5 V, 3 V, 1.8 V) |
| Protocol | T=0; T=1 |
| Built-in Peripherals | |
| LCD | Graphical LCD with White Backlight Resolution : 128 x 64 pixels Number of Characters: 16 characters x 8 lines |
| LED | 4 single-color: Blue, Yellow, Green and Red |
| Tapping Region | Tri-color backlight: Red, Green and Blue |
| Speaker | Audio Tone Indication |
| Other Features | |
| Security | Tamper Switch (Internal anti-intrusion detections and protection) |
| Firmware Upgrade | Supported |
| Real-time Clock | Supported |
| Certifications/Compliance | |
| Certifications/Compliance | ISO 14443 ISO 7816 (SAM Slot) VCCI (Japan) KC (Korea) CE FCC RoHS 2 REACH |
| Device Driver Operating System Support | |
| Device Driver Operating System Support | Windows® CE Windows® Linux® |
