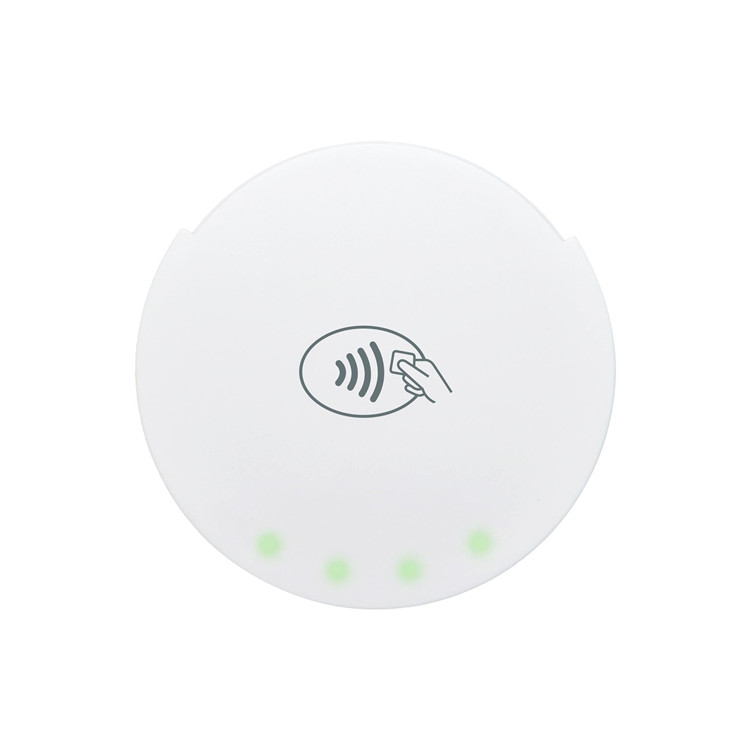

AMR220-C1 ACS Secure BLE MPOS Reader
ACR1255U-J1 Android IOS nfc BLE reader/contactless nfc BLE skimmer
Introduction
AMR220-C1 ACS Secure BLE ® mPOS Reader supports ISO 7816 Class A, B, and C full-sized smart cards (5 V, 3 V, and 1.8 V), including microprocessor cards with T=0 and T=1 protocol, ISO 14443 Type A and B smart cards, ®, FeliCa, and most NFC tags and devices compliant with the ISO 18092 standard. It is primarily designed to meet major payment and security standards, such as Mastercard® Contactless, Visa® Contactless, EMV™ Level 1 & Level 2. It is Apple Pay® and Android Pay™-ready.
| Physical Characteristics | |
|---|---|
| Dimensions (mm) | 70.0 mm (L) x 70.0 mm (W) x 15.0 mm (H) |
| Weight (g) | 50.8 g (70.8 g with cable ± 5 g tolerance) |
| BLE Interface | |
| Protocol | BLE®(BLE4.1) |
| Power Source | Rechargeable Lithium-ion Battery (charging through USB) |
| Speed | 1 Mbps |
| USB Interface | |
| Protocol | USB CCID |
| Connector Type | Micro-USB |
| Power Source | From USB port |
| Speed | USB Full Speed (12 Mbps) |
| Cable Length | 1 m, Detachable |
| Contact Smart Card Interface | |
| Number of Slots | 1 Full-sized Card Slot |
| Standard | ISO 7816 Parts 1-3, Class A, B, C (5 V, 3 V, 1.8 V) |
| Protocol | T=0; T=1 |
| Contactless Smart Card Interface | |
| Standard | ISO/IEC 18092 NFC, ISO 14443 Type A & B, , FeliCa |
| Protocol | ISO 14443-4 Compliant Card, T=CL Classic Card, T=CL ISO 18092, NFC Tags FeliCa |
| Built-in Peripherals | |
| LED | 4 single-colors: Green |
| Buzzer | Audio Tone Indication |
| Other Features | |
| Encryption | In-device AES encryption algorithm |
| Firmware Upgrade | Supported |
| Certifications/Compliance | |
| Certifications/Compliance | EN 60950/IEC 60950 ISO 7816 ISO 18092 ISO 14443 USB Full Speed BLE® EMV™ Levels 1 & 2 Mastercard® Contactless Visa payWave® PC/SC CCID MIC (Japan) CE FCC RoHS 2 REACH Microsoft® WHQL |
| Device Driver Operating System Support | |
| Device Driver Operating System Support | Windows® Linux® MAC OS® 10.7 and later Android™ 4.4 and later iOS 8.0 and later |
