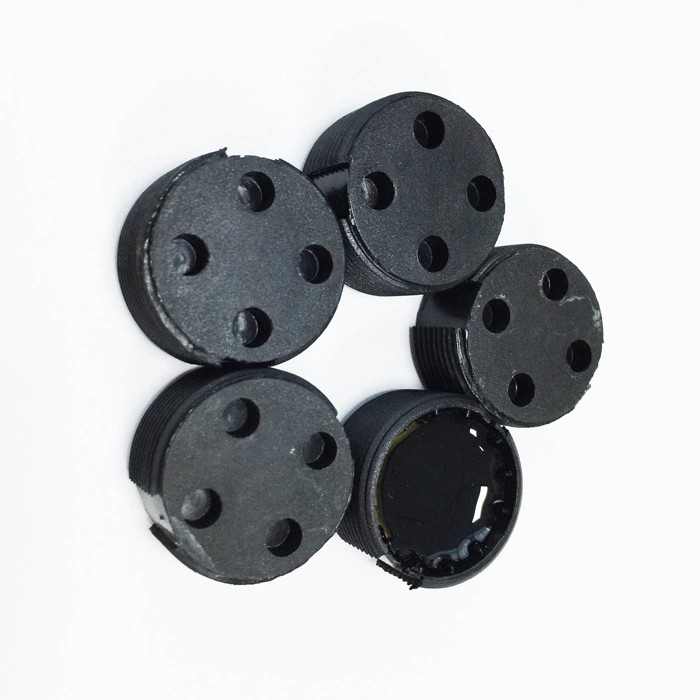

Screw Worm RFID Application Waste Bin Tag for Asset Garbage Tracking 134.2kHz EM4305

Asset Garbage Tracking 134.2kHz EM4305 RFID Screw Worm Waste Bin Tag


Waste management utilizes RFID to uniquely identify waste bins. When the truck empties the bin, the tag is read and weighed, to accurately simplify billing according to the amount of waste was produced.

Key benefits:
1. RFID solutions support identification and traceability of waste streams.
2. Tags attached to waste containers enable operators to monitor sorting quality, track the number of times a container is placed for collection and track the weight of its contents.
3. Tags simplify service billing and support implementation of incentive-based invoicing.
Product Name
RFID Waste Bin Tag
Material
ABS+Epoxy filling
Diameter
30mm
Thickness
15mm
Holes diameter
5.5mm
Axial/Radial Force
1000 N, 10 sec
Color
Black, Orange or Costomized
Shock
IEC 68.2.29(40G, 18ms, 6 axis, 2000 times)
Working Frequency
134.2KHz/ 125KHz/ 13.56MHz/ UHF
Read Distance
- 5~10cm
- 5cm
- 2m ~ 3m
Dependent upon reader, environment and application
Standards
Unique: DIN 30745; FDX-b BDE: EN14803, DIN130745; HDX: EN14803, DIN30745; HF: ISO15693, ISO18000-3, DIN30745; UHF: UHF EPC CIG2,
ISO18000-6C, DIN30745.
Operating Temperature
-25 to +120°C
Storage Temperature
-40 to +200°C

Specification:
- Diameter: 30mm,40mm etc
- Thickness: 15mm
- Color: Black
- Working Frequency: 125kHz/ 13.56Mhz / UHF
- Material: ABS
- Operating Temperature: -25 to +60 oC
- Storage Temperature: -40 to +70 oC
- Weight: 10g
- Resistance: Harsh environment


Application:
- Waste Management

Additonal Crafts:

- Ink-jet printing Logos & Number
- Laser Serial Number, UID number
- Chip encoding
- Anti-metal layer
- 3M adhesive layer
- Epoxy filling


Screw Worm RFID Application Waste Bin Tag for Asset Garbage Tracking 134.2kHz EM4305Screw Worm RFID Application Waste Bin Tag for Asset Garbage Tracking 134.2kHz EM4305Screw Worm RFID Application Waste Bin Tag for Asset Garbage Tracking 134.2kHz EM4305Screw Worm RFID Application Waste Bin Tag for Asset Garbage Tracking 134.2kHz EM4305


RFID&NFC Technology

Screw Worm RFID Application Waste Bin Tag for Asset Garbage Tracking 134.2kHz EM4305Screw Worm RFID Application Waste Bin Tag for Asset Garbage Tracking 134.2kHz EM4305Screw Worm RFID Application Waste Bin Tag for Asset Garbage Tracking 134.2kHz EM4305

Company profile

Established in 2001 year, Shenzhen Chuangxinji smart card co.,Ltd was specialized in producing

and marketing of pvc cards,smart cards and RFID wristbands&Tags.

In possession of three modern and high standard production line:
PVC card production line with monthly output of 20,000,000 pieces cards: Brand-new CTP machines and brand Heidelberg offset printing machines, 8 compounding machines.
Antenna production line with monthly output of 20,000,000 pieces cards: roll to roll printing machines, compounding machines, machines for erosion and engraving.
RFID end product production line with monthly output of 500,000,000 smart cards and 300,000,000 RFID tags: reversed assembling machines compound die cutting machines, laminating machines.

Marketing Team
We own 26 marketing staffs who speak English, Germany, France, Spanish, Arabic and so on, our business range from Europe, America, Oceania, Africa, Asia and middle east countries and regions.
