125khz Rfid Smart Card Inlay Prelam Sheet A4 Size PVC White

Shenzhen Chuangxinji Smart card Co.,Ltd
Contact Now
    Buy cheap 125khz Rfid Smart Card Inlay Prelam Sheet A4 Size PVC White from wholesalers

    Buy cheap 125khz Rfid Smart Card Inlay Prelam Sheet A4 Size PVC White from wholesalers
    • Buy cheap 125khz Rfid Smart Card Inlay Prelam Sheet A4 Size PVC White from wholesalers
    • Buy cheap 125khz Rfid Smart Card Inlay Prelam Sheet A4 Size PVC White from wholesalers

    125khz Rfid Smart Card Inlay Prelam Sheet A4 Size PVC White

    Ask Lasest Price
    Brand Name : OEM
    Supply Ability : 6000000 Piece/Pieces per Month 125khz PVC White TK4100/ EM4200 rfid smart card prelam
    • Product Details
    • Company Profile

    125khz Rfid Smart Card Inlay Prelam Sheet A4 Size PVC White

    Product Description

    125khz Rfid Smart Card Inlay Prelam Sheet A4 Size PVC White

    Intem125khz A4 size PVC White rfid smart card prelam sheet inlay
    MaterialPVC/ABS/PET/PETG
    SpecificationDifferent layouts are available
    Read RangeDepend on the Reader and Chip
    Operating Frequency125KHz/13.56MHz/860~960MHz
    ChipEM4200,TK4100,T5577, RFID 1K ,RFID 4K,Desfire 2k ,Desfire 4k ,Desfire 8k,NFC213,etc Custom all available
    StandardISO 14443A, ISO 15693, ISO 18000-6C
    Dimension310mm x 468mm, 520mm x420mm, A4 210mm x297,Etc

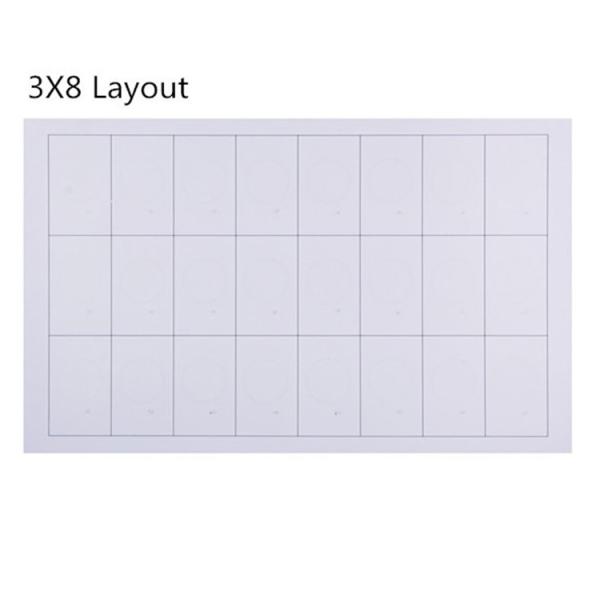

    Layout3x7, 5x5,3x8,4x8,4x6, 2x5,2x4, or any Customization of CR80 card or any unit antenna size or Combo Inlay(LF+HF)
    ThicknessHF normal 0.45mm,0.5mm, min.0.3mm
    LF normal ,0.6mm, Min. 0.5mm
    UHF 0.6mm, 0.5mm
    AntennaHF: air antanna, altrasonic embeding or al etching
    LF: aer antanna, or altrosonic embedding
    UHF: al etching
    Working Temperature-25℃~+55℃
    Store Temperature-25℃~+55℃
    BenefitUltrasonic embedding or air coil antenna are available, automatic module placement and spot welding to antenna, suitable for volume production.
